Low Profile Encoders with High Performance Components
July 23, 2018
QM35 & QML35 install quickly, saving production time
Article originally published in sensorsmag.com

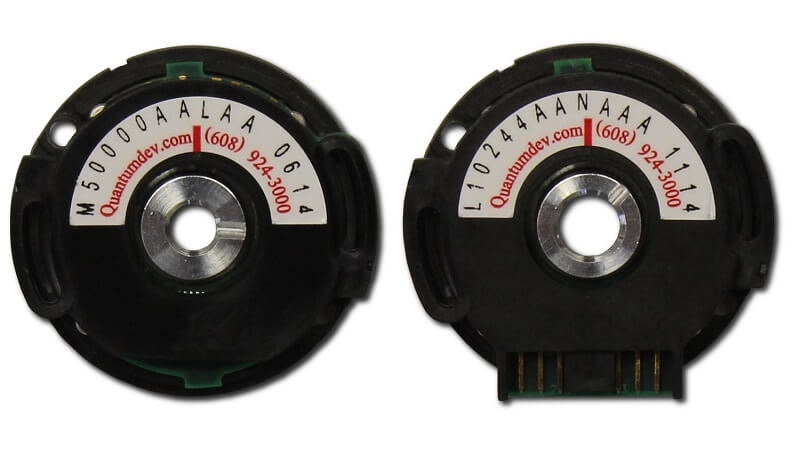

The QM35 and QML35 modular incremental optical encoders from Quantum Devices are described as high-performance components in low-profile modular packages. They are groomed for high-volume OEM applications and are priced competitively for all size servo motors and other precision motion control positioning systems.

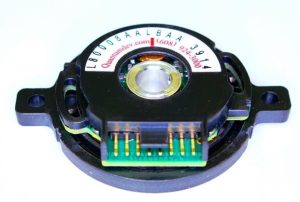

QML35 has a low profile assembled height of 0.43” (10.9mm)
Available in 14 standard precision line counts to 13 bits or 8192 counts, the QM and QML models are compatible for motor commutation control of three-phase 4-, 6-, 8-, and 10-pole servo motors. Both encoder models use a patented lock-n-twist mechanism that promises to ease installation. Motor shaft sizes up to 0.375 inches can be easily accommodated.
Both models specify an operating temperature range from -30°C to +115°C. There are two connector schemes: the QM35 uses a 15-pin connector (full complement output signals) and the QML35 employs a simpler 8-pin arrangement (single ended/TTL).
Low-profile rotary encoder design features:
- High noise immunity
- RoHS construction
- Hermetically sealed LED
- Up to 1MHz frequency response
- Multiple mounting options including resolver size 15
For further information, view the QM35 and QML35 datasheets or visit our encoder store to buy online.
Contact Quantum Devices with questions, or to request custom configuration.
